Parts Number:21040109802

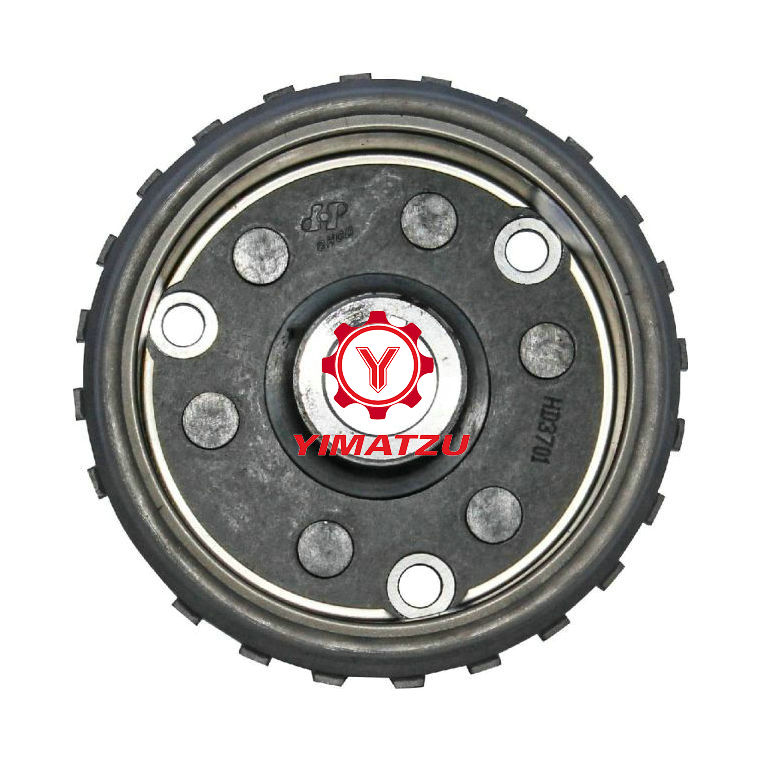

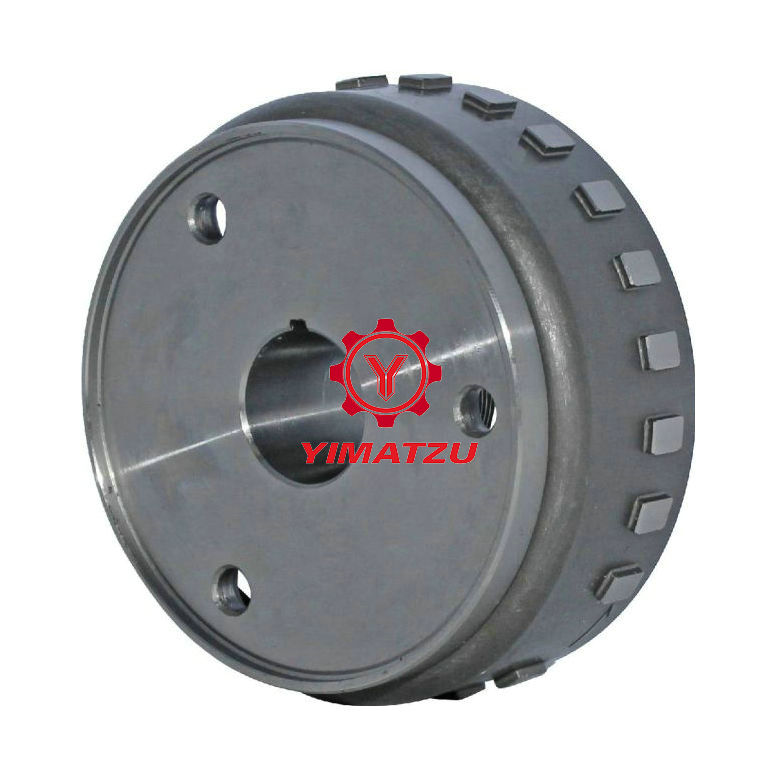

This magneto cylinder / stator housing is commonly used for a wide range of ATVs and UTVs. Most popularly applies to the Odes and Kangdi (Kandi) 800cc UTVs.
Common Odes model names consist of variations of "Odes 800cc UTV", "Odes 4x4 UTV" etc. Common listed Odes magneto cylinder part number is 291.9.2 and listed description is "FLY WHEEL".
Common Kandi (Kangdi) model names consist of variations of "Kandi 800", "Kangdi 800", "Kandi 800cc 4x4 UTV", "Kangdi 800cc 4x4 UTV" etc. Common listed Kandi magneto cylinder part number is 291.9.2 and listed description is "FLY WHEEL".
Inner Diameter (ID): 104.9mm
Outer Diameter (OD): 128.3mm
Overall Height: 59.2mm
Center Hole Mount (Tapered): 31.3/23mm
Mounting Holes (center - center): 77mm
Mounting Holes: 9mm
This part is compatible with the following vehicles
2012+ ODES Dominator 800
2015+ ODES Dominator X2 800
2015+ ODES Dominator X4 800
2015+ ODES Assailant
2015-2017 ODES Raider 800
2015+ ODES Dominator 1000
2015+ ODES Dominator X2 1000
2015+ ODES Dominator X4 1000
2015-2017 ODES Raider 1000
2018+ ODES Ravager 1000
