Parts Number:291.9.1

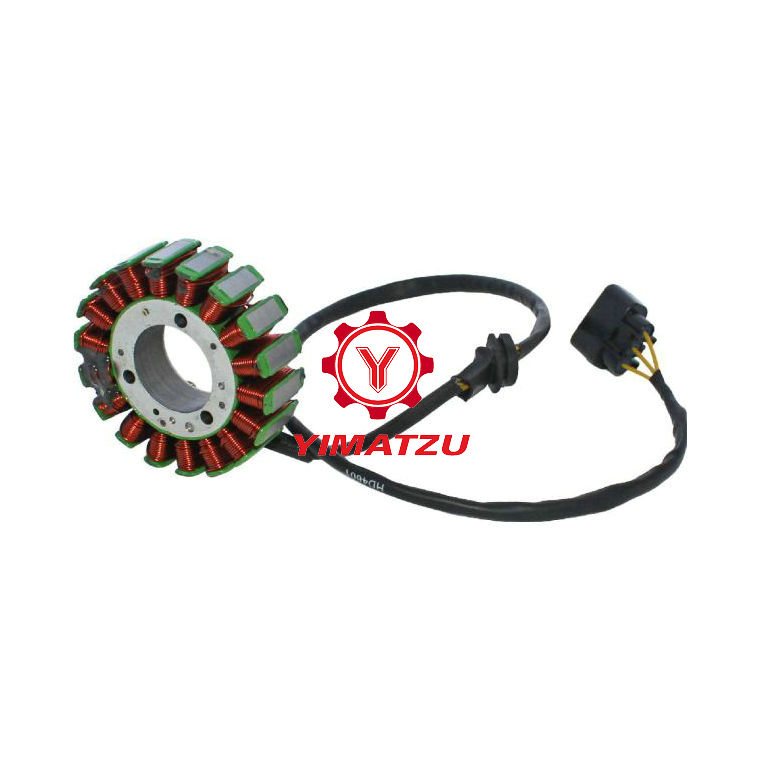

This stator is commonly used for a wide range of ATVs and UTVs. Most popularly applies to the Odes and Kangdi (Kandi) 800cc UTVs.
Common Odes model names consist of variations of "Odes 800cc UTV", "Odes 4x4 UTV" etc. Common listed Odes stator part number is 291.9.1 and listed description is "PLATE-STATOR A".
Common Kandi (Kangdi) model names consist of variations of "Kandi 800", "Kangdi 800", "Kandi 800cc 4x4 UTV", "Kangdi 800cc 4x4 UTV" etc. Common listed Kandi stator part number is 291.9.1 and listed description is "PLATE-STATOR A".
Approximate dimensions:
Outside Diameter: 103.8mm
Centre Hole Diameter: 42.1mm
Mounting Hole (centre-centre): 46.2mm
Bolt Hole: 6.7mm
Harness Length: 85cm
